Rede Neural Atômica: nova perspectiva inspirada no Modelo Atômico de Rutherford para Aprendizado XOR

import torch
import torch.nn as nn
import torch.optim as optim
import matplotlib.pyplot as plt
import numpy as np


# ======================
# Classe Rede Atômica
#=======================
class AtomicNN(nn.Module):
  def __init__(self, input_dim = 2, hidden_dim = 8, output_dim = 1):
      super(AtomicNN, self).__init__()
      self.nucleus = nn.Linear(input_dim, hidden_dim)
      self.orbit1 = nn.Linear(hidden_dim, hidden_dim)
      self.orbit2 = nn.Linear(hidden_dim, hidden_dim)
      self.orbit3 = nn.Linear(hidden_dim, hidden_dim)
      self.nucleus_back = nn.Linear(hidden_dim, hidden_dim)
      self.output = nn.Linear(hidden_dim, output_dim)


  def forward(self, x):
      core = torch.relu(self.nucleus(x))
      orbit1 = torch.relu(self.orbit1(core))
      orbit2 = torch.relu(self.orbit2(orbit1))
      orbit3 = torch.relu(self.orbit3(orbit2))
      fusion = torch.relu(self.nucleus_back(orbit3) + core)
      out = torch.sigmoid(self.output(fusion))
      return out


# =====================
# Classe POO principal
# =====================
class AtomicXor:
  def __init__(self, epochs = 10000, lr = 0.005):

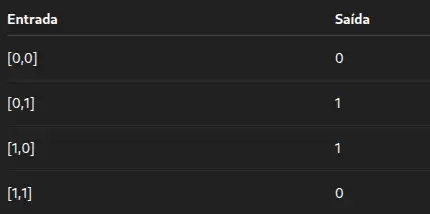

      # Dados XOR
      self.X = torch.tensor([[0, 0], [0, 1], [1, 0], [1, 1]], dtype = torch.float32)
      self.Y = torch.tensor([[0], [1], [1], [0]], dtype = torch.float32)
      # Modelo
      self.model = AtomicNN()
      # Hiperparâmetros
      self.epochs = epochs
      self.lr = lr
      # Critério e otimizador
      self.criterion = nn.BCELoss()
      self.optimizer = optim.Adam(self.model.parameters(), lr = self.lr)


  # Treinar
  def train(self):
      for epoch in range(self.epochs):
          self.optimizer.zero_grad()
          outputs = self.model(self.X)
          loss = self.criterion(outputs, self.Y)
          loss.backward()
          self.optimizer.step()
          if (epoch + 1) % (self.epochs//5) == 0:
              print(f'Época {epoch + 1}, Loss: {loss.item():.4f}')

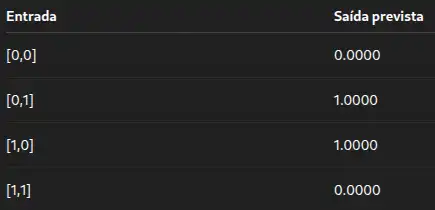

  # Testar
  def test(self):
      with torch.no_grad():
          preds = self.model(self.X)
          print('\nSaída final da rede atômica (XOR):')
          for i in range(len(self.X)):
              print(f'{self.X[i].tolist()} -> {preds[i].item():.4f}')
      return preds


  #Plotar fronteira de decisão
  def plot_decision_boundary(self):
      xx, yy = np.meshgrid(np.linspace(-0.5, 1.5, 200), np.linspace(-0.5, 1.5, 200))
      grid = torch.tensor(np.c_[xx.ravel(), yy.ravel()], dtype=torch.float32)
      with torch.no_grad():
          Z = self.model(grid).reshape(xx.shape)
      plt.figure(figsize = (6, 6))
      plt.contourf(xx, yy, Z, levels = [0, 0.5, 1], cmap = 'coolwarm', alpha = 0.6)
      X_plot = self.X.numpy()
      Y_plot = self.Y.numpy().flatten()
      plt.scatter(X_plot[:,0], X_plot[:,1], c = Y_plot, cmap = 'coolwarm', edgecolors = 'k', s = 120)
      plt.title('Fronteira de decisão - Rede Neural Atômica (XOR)')
      plt.xlabel('Entrada 1')
      plt.ylabel('Entrada 2')
      plt.show()

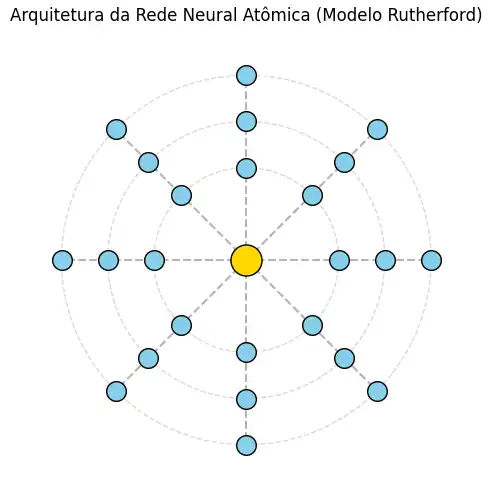

  # Plotar arquitetura atômica
  def plot_atom_architecture(self):
      fig, ax = plt.subplots(figsize = (6, 6))
      ax.set_aspect('equal')
      ax.set_xlim(-5, 5)
      ax.set_ylim(-5, 5)
      ax.set_title('Arquitetura da Rede Neural Atômica (Modelo Rutherford)')


      # Cores
      core_color = 'gold'
      orbit_color = 'skyblue'


      # Núcleo
      nucleus_pos = (0, 0)
      ax.scatter(*nucleus_pos, s = 500, c = core_color, label = 'Núcleo', edgecolors = 'k', zorder = 5)


      # Função para distribuir neurônios em órbitas
      def draw_orbit(radius, n_neurons):
          angles = np.linspace(0, 2 * np.pi, n_neurons, endpoint = False)
          positions = [(radius * np.cos(a), radius * np.sin(a)) for a in angles]
          for pos in positions:
              ax.scatter(*pos, s = 200, c = orbit_color, edgecolors = 'k', zorder = 5)
          circle = plt.Circle(nucleus_pos, radius, color = 'gray', fill = False, linestyle = '--', alpha = 0.3)
          ax.add_artist(circle)
          return positions


      # Desenha 3 órbitas
      orbit1_pos = draw_orbit(2, 8)
      orbit2_pos = draw_orbit(3, 8)
      orbit3_pos = draw_orbit(4, 8)


      #Linhas conectando núcleo à primeira órbita (simplificado)
      for pos in orbit1_pos:
          ax.plot([nucleus_pos[0], pos[0]], [nucleus_pos[1], pos[1]], 'k--', alpha = 0.3)
      #Linhas entre órbitas (Simplificado)
      for pos1, pos2 in zip(orbit1_pos, orbit2_pos):
          ax.plot([pos1[0], pos2[0]], [pos1[1], pos2[1]], 'k--', alpha = 0.3)
      for pos2, pos3 in zip(orbit2_pos, orbit3_pos):
          ax.plot([pos2[0], pos3[0]], [pos2[1], pos3[1]], 'k--', alpha = 0.3)


      plt.axis('off')
      plt.show()


 # ==========================
 # Função main
 # ==========================


if __name__ == '__main__':
 atomic_xor = AtomicXor(epochs = 10000, lr = 0.005)
 atomic_xor.train()
 atomic_xor.test()
 atomic_xor.plot_decision_boundary()
 print('\n')
 atomic_xor.plot_atom_architecture()
